Product Information

Product description

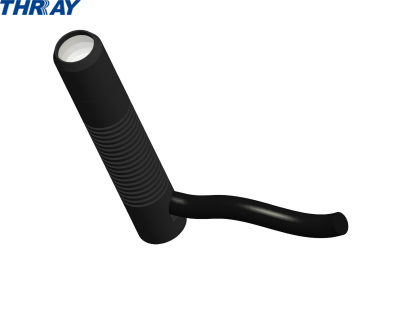

R07N9XZ Φ10 point light source adopts high performance UV LED and is optically optimized. Compared with the traditional process, the mercury lamp has the characteristics of low power consumption, long life, high energy, uniform and stable output and fast switch. Can meet, electroacoustic curing, offset printing, special printing, product coating, packaging and other industries use demand. For different use needs, different wavelength of equipment can be selected.

Scope of application

• Speakers,

• speakers earphones,

• earplugs offset printing gravure,

• lithographic,

• letterpress,

• screen printing paper finish products surface coating




Product characteristics

1 Compact design, small size,The conversion efficiency of UV LED is higher than traditional Mercury Lamp, and the service life is greatly increased.

2 High Energy, uniform and stable output，Under normal working distance (5mm-20mm) , the energy can be uniformly irradiate to the surface of the articles to be cured. At 10mm height, the radiation energy can reach 2786mW/cm2(395nm, EIT energy meter) .

3 The lamp cap and controller can be combined in many ways，One drag one is a combination of a controller and a lamp; one drag two is a combination of a controller and two lamp. A variety of combinations to adapt to a variety of use needs.

4 Multiple modes of control， In addition to our THRAYPOT2C-40 controller (one-to-four) independent control equipment switch, but also according to customer, different needs to develop different programs to more convenient use of the equipment. For example, direct control by the client, or additional, other control methods such as: foot switch, photoelectric switch, etc. .

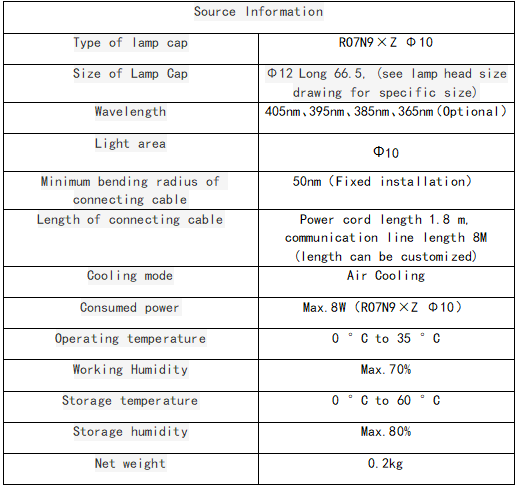

Technical parameter
