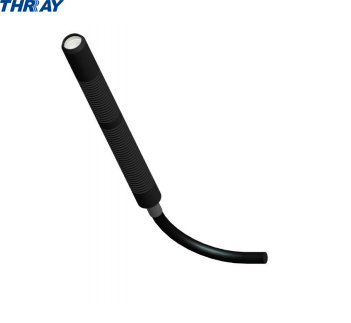

THRAYPOT1-48DX Φ4@20mm 395A LED UV curing lamp

THRAYPOT1-48DX Φ4@20mm 395A LED UV curing lamp

Product Number:SN202112161437228403
Product Profile:Product InformationProduct descriptionTHRAYPOT1-48DX Φ4@20mm 395A point light source is made of high performance UV LED by optical design. Compared with traditional mercury lamp
Purchase Price:¥0.00 original Price:¥0.00

Product Description

Product Information


Product description

THRAYPOT1-48DX Φ4@20mm 395A point light source is made of high performance UV LED by optical design. Compared with traditional mercury lamp, THRAYPOT1-48DX Φ4@20mm 395A point light source has the characteristics of low power consumption, long life, high energy, uniform and stable output, fast switch and so on.


Scope of application

  • Speakers,

  • speakers earphones,

  • earplugs offset printing gravure,

  • lithographic,

  • letterpress,

  • screen printing paper finish products surface coating


Product characteristics

1 Compact design, small size,The conversion efficiency of UV LED is higher than traditional Mercury Lamp, and the service life is greatly increased.

High Energy, uniform and stable output,At the normal working distance (15mm-30mm) , the energy can be uniformly irradiate to the surface of the articles to be cured. At the height of 20mm, the radiation energy can reach 2689mw/cm2(Eit is converted by 395nm point light energy meter) .

The lamp cap and controller can be combined in many ways,There are a drag one, one drag two, one drag three, one drag four and so on a variety of lamp and controller combination to meet the needs of a variety of use.

Multiple modes of control, In addition to the THRAYPOT2C-40(one-to-four) controller can be independent control equipment switch, but also according to customer needs, plus 1 Other 1 control methods, such as: foot switch, photoelectric switch, etc. to more convenient use of the equipment.


Technical parameter
