Product Information

Product description

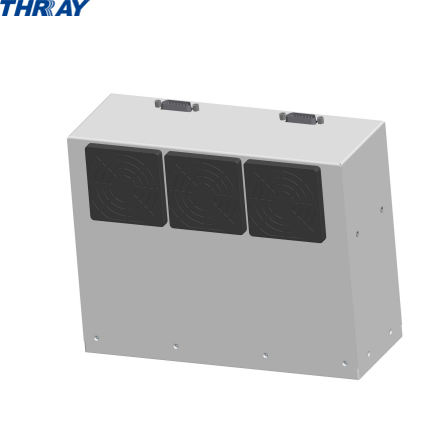

R10S0XF50X200 surface light source adopts high performance UV LED and optimized design. Compared with the traditional process, the mercury lamp has the characteristics of low power consumption, long life, high energy, uniform and stable output, fast switch and so on. Can meet, electroacoustic curing, offset printing, special printing, product coating, packaging and other industries use demand. For different use needs, different wavelength of equipment can be selected.

Scope of application

• 1.Speakers,

  2.Receiver Receiver


• 3.Earphones, earplugs

• 4.Offset printing

• 5.Gravure, lithographic, relief, screen printing

• 6.Paper finish

• 7.Product surface coating

Product characteristics

1 Low power consumption, long service LIFE UV LED conversion efficiency than the traditional mercury lamp, and greatly increased service life.

2High Energy, uniform and stable output. Under normal working distance (0mm-50mm) , the energy can be evenly irradiate to the surface of the articles to be cured. At 30MM height, the radiation energy can reach 4200mW/cm (405nm, EIT energy meter, Q21) . The lower limit of energy is estimated to be 3780mW/cm when the same level lamp bead is used in this stage and the same level lamp bead is used in the later stage of mass production due to process errors and other factors.

3 There are many combinations of the lamp cap and the controller, one is the combination of one controller and one lamp cap, the other is the combination of one controller and two lamp caps. A variety of combinations to adapt to a variety of use needs.

4 In addition to the various control methods, the THRAYRAD1C 600 controller can be used to control the equipment switch independently, and different schemes can be made according to the different requirements of customers to make the equipment more convenient to use. Such as direct control by the client, or additional control methods such as: foot switch, photoelectric switch and so on.

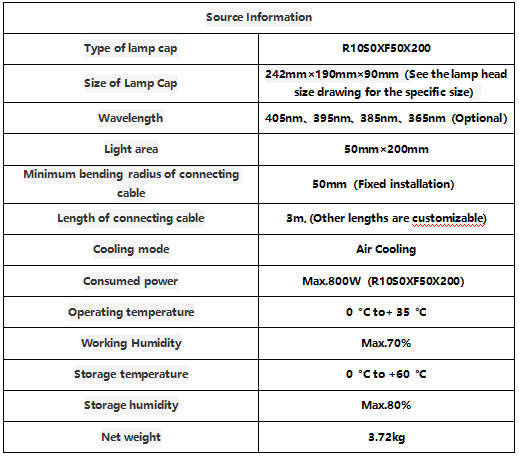

Technical parameter
