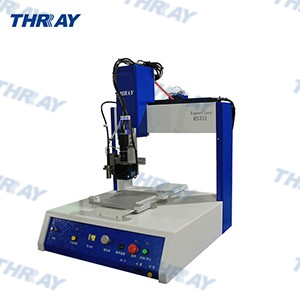

Desktop dispensing machine -RS331 (CCD light fixation)

Desktop dispensing machine -RS331 (CCD light fixation)

Product Number:SN202207040914336663
Product Profile:Product InformationProduct parametersTriaxial performance parameters?1. Effective Travel
Purchase Price:¥0.00 original Price:¥0.00

Product Description

Product Information


Product parameters

Triaxial performance parameters

1. Effective Travel:

X-AXIS-300MM (Glue Dispenser and Light Fixing head move left and right)

Y-AXIS-300MM (worktable move back and forth)

Z-axis-100mm (Glue Dispenser and Light Fixing head move up and down)

2. Speed:

X-AXIS-300MM/S

Y-300mm/s

Z-AXIS-100MM/s

3. The repetition accuracy is ± 0.02 mm

4, driving mode: Servo Motor + Module

5, maximum load-bearing: table-8 kg Z axis-5 kg

6, control mode: point-to-point, line and ARC difference complement

7, Programming Mode: teacher input, PC programming input (select) , aCAD input (select)

8, program capacity: 2M, 75 programs/450 points or 30 programs/1140 points, can add SD card expansion

9, power: AC220V air pressure: 5-7 kgf/cm2

10, shape size: 527mm (long) × 592mm (wide) × 697mm (high)

11, whole machine weight: About 60kg
