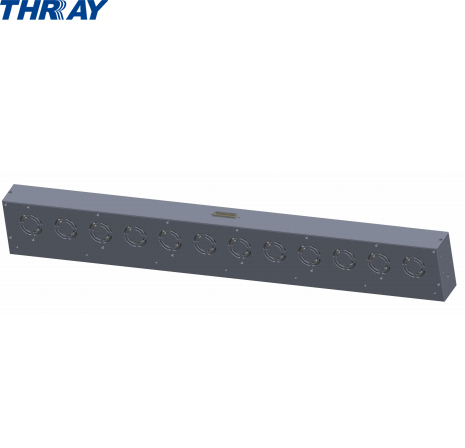

THRAYLINE-59DM61 700X10 405A

THRAYLINE-59DM61 700X10 405A

Product Number:SN202201271053211145
Product Profile:Product InformationProduct descriptionThrayline-59dm61700x10405a line light source adopts high performance UV LED and is optimized by array design. Compared with traditional mercury lamp
Purchase Price:¥0.00 original Price:¥0.00

Product Description

Product Information


Product description

Thrayline-59dm61700x10405a line light source adopts high performance UV LED and is optimized by array design. Compared with traditional mercury lamp, THRAYLINE-59DM61 has the characteristics of low power consumption, long life, high energy, uniform and stable output, fast switch and so on. Can meet, electroacoustic curing, offset printing, special printing, product coating and other industries use demand. Different wavelength devices can be selected for different use requirements.


Scope of application

  • 1.Speakers,

    2.Receiver Receiver

  • 3.arphones, earplugs

  • 4.Offset printing

  • 5.Gravure, lithographic, relief, screen printing

  • 6.Paper finish

  • 7.Product surface coating


Product characteristics

Low power consumption, long service LIFE UV LED conversion efficiency than the traditional mercury lamp, and greatly increased service life.

High Energy, uniform and stable output. Under normal working distance (10mm-30mm) , the energy can be uniformly irradiate to the surface of the articles to be cured. At 30MM height, the radiation energy can reach 3247mW/cm2(405nm, EIT energy meter) .

There are many combinations of the lamp cap and the controller, one is the combination of one controller and one lamp cap, the other is the combination of one controller and two lamp caps. A variety of combinations to adapt to a variety of use needs.

Various control methods, in addition to our THRAYPOWER1B 1500-002A (linear light source universal controller) independent control device switch, but also according to the different needs of customers to make different plans to more convenient use of the device. Such as direct control by the client, or additional control methods such as: foot switch, photoelectric switch and so on.

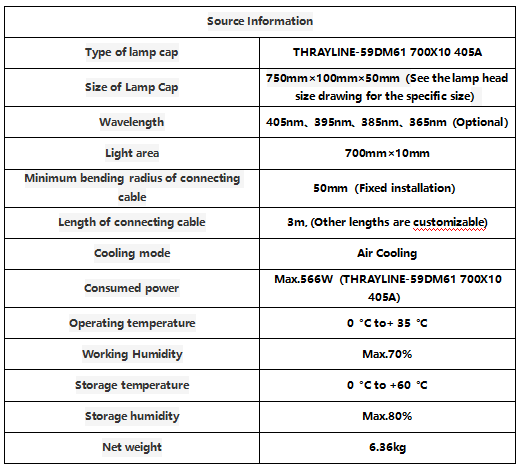

Technical parameter
