Product Information

Product description

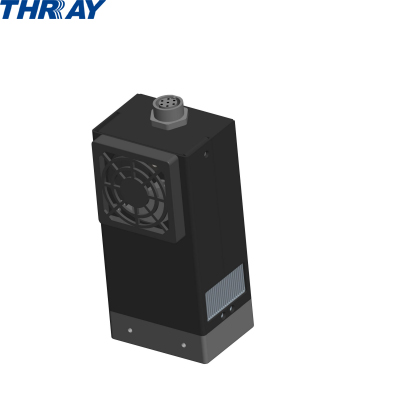

R10S6XF30X10 LINEAR light source adopts high performance UV LED and is optimized by array design. Compared with traditional mercury lamp, R10S6XF30X10 linear light source has the characteristics of low power consumption, long life, high energy, uniform and stable output, fast switch and so on. Can meet, electroacoustic curing, offset printing, special printing, product coating, packaging and other industries use demand. Different wavelength devices can be selected for different use requirements.

Scope of application

• 1.Speakers,

  2.Receiver Receiver


• 3.arphones, earplugs

• 4.Offset printing

• 5.Gravure, lithographic, relief, screen printing

• 6.Paper finish

• 7.Product surface coating

Product characteristics

1 Low power consumption, long service LIFE UV LED conversion efficiency than the traditional mercury lamp, and greatly increased service life.

2 High Energy, uniform and stable output. At the normal working distance (5mm-30mm) , the energy can be uniformly irradiate to the surface of the articles to be cured. At the height of 5mm/working, the radiation energy can reach 11549mW/cm2(365nm, EIT energy meter) .

3 There are many combinations of the lamp cap and the controller, one is the combination of one controller and one lamp cap, the other is the combination of one controller and two lamp caps. A variety of combinations to adapt to a variety of use needs.

4 Multiple modes of control, in addition to our thray power1b/300-291A (30X10 line light source controller) independent control device switch, but also according to the different needs of customers to develop different programs to more convenient use of the device. Such as direct control by the client, or additional control methods such as: foot switch, photoelectric switch and so on.

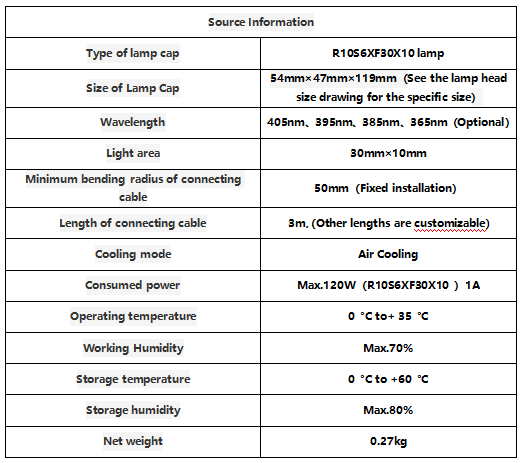

Technical parameter
