Product Information

Product description

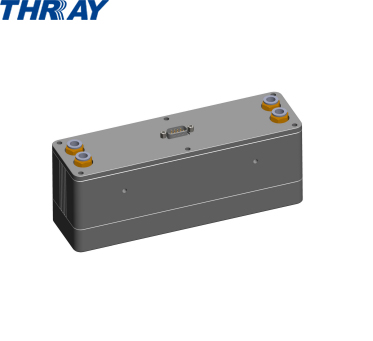

R13N6XQ190X5 line light source adopts high performance UV LED and is optimized by array design. Compared with traditional mercury lamp, it has the characteristics of low power consumption, long life, high energy, uniform and stable output and fast switch. Can meet, electroacoustic curing, offset printing, special printing, product coating, packaging and other industries use demand. Different wavelength devices can be selected for different use requirements.

Scope of application

• 1.Speakers,

  2.Receiver Receiver


• 3.arphones, earplugs

• 4.Offset printing

• 5.Gravure, lithographic, relief, screen printing

• 6.Paper finish

• 7.Product surface coating

Product characteristics

1 Low power consumption, long service LIFE UV LED conversion efficiency than the traditional mercury lamp, and greatly increased service life.

2 High Energy, uniform and stable output. Under normal working distance (5mm-15mm) , the energy can be uniformly irradiate to the surface of the articles to be cured, and the radiation energy can reach 12w/cm2(365nm, EIT energy meter) at 5mm height/working.

3 There are many combinations of the lamp cap and the controller, one is the combination of one controller and one lamp cap, the other is the combination of one controller and two lamp caps. A variety of combinations to adapt to a variety of use needs.

4 In addition to the various control methods, the THRAYPOWER1B 500-251B controller can be independently controlled by the device switch, but also according to the different needs of customers to make different plans to more convenient use of the device. For example, by the direct control of the client, or the addition of it, his control methods such as: foot switch, photoelectric switch, etc. .

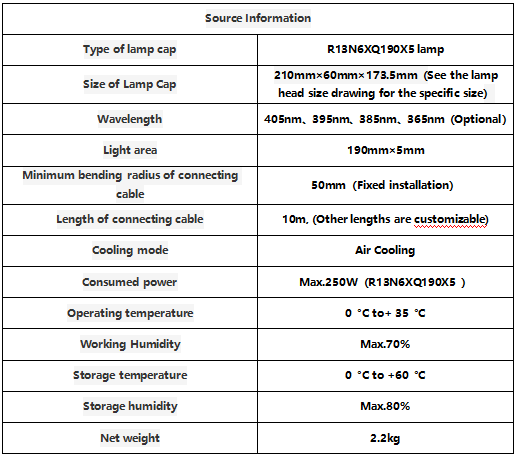

Technical parameter
