Home page ? Products ? UV LED Curing ? UV LED Line Curing System

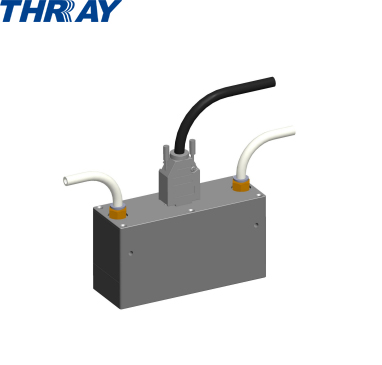

R13N0XQ120X5 lamp

R13N0XQ120X5 lamp

Product Number:SN202201261416165877
Product Profile:Product InformationProduct descriptionR13N0XQ120X5 line light source adopts high performance UV LED and is optimized by array design. Compared with traditional mercury lamp
Purchase Price:¥0.00 original Price:¥0.00

Product Description

Product Information


Product description

R13N0XQ120X5 line light source adopts high performance UV LED and is optimized by array design. Compared with traditional mercury lamp, it has the characteristics of low power consumption, long life, high energy, uniform and stable output, fast switch and so on. Can meet, electroacoustic curing, offset printing, special printing, product coating, packaging and other industries use demand. Different wavelength devices can be selected for different use requirements.

Scope of application

  • 1.Speakers,

    2.Receiver Receiver

  • 3.arphones, earplugs

  • 4.Offset printing

  • 5.Gravure, lithographic, relief, screen printing

  • 6.Paper finish

  • 7.Product surface coating


Product characteristics

Low power consumption, long service LIFE UV LED conversion efficiency than the traditional mercury lamp, and greatly increased service life.

High Energy, uniform and stable output. Under normal working distance (5mm-30mm) , the energy can be uniformly irradiate to the surface of the articles to be cured, and at 5mm height the radiation energy can reach 13707mW/cm2(405nm, EIT energy meter) .

There are many combinations of the lamp cap and the controller, one is the combination of one controller and one lamp cap, the other is the combination of one controller and two lamp caps. A variety of combinations to adapt to a variety of use needs.

In addition to the various control methods, the THRAYPOWER1B 500-251B (linear light source controller) can be independently controlled by our company. Such as direct control by the client, or additional control methods such as: foot switch, photoelectric switch and so on.

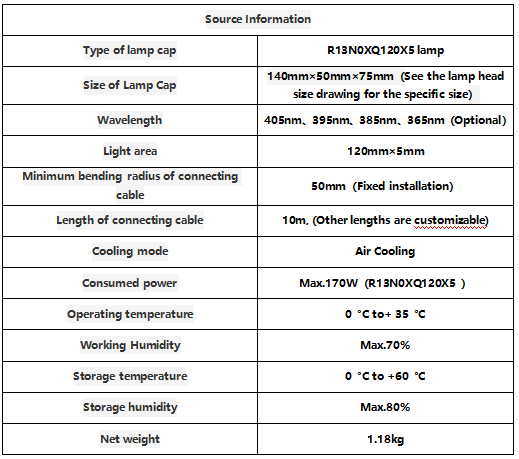

Technical parameter
