THRAYLINE 350X10 405A

THRAYLINE 350X10 405A

Product Number:SN202201261443191388
Product Profile:Product InformationProduct descriptionTHRAYLINE 350x10405a light source adopts high performance UV LED and is optimized by array design. Compared with traditional mercury lamp
Purchase Price:¥0.00 original Price:¥0.00

Product Description

Product Information


Product description

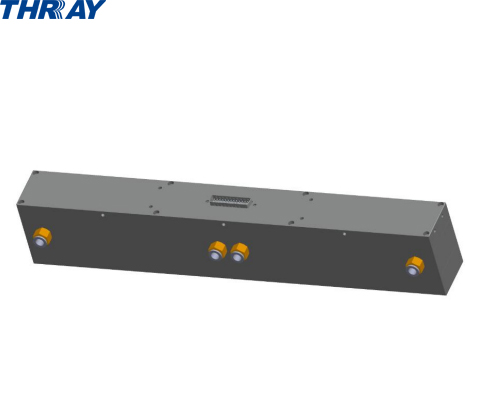

THRAYLINE 350x10405a light source adopts high performance UV LED and is optimized by array design. Compared with traditional mercury lamp, THRAYLINE 350x10405a light source has the characteristics of low power consumption, long life, high energy, uniform and stable output and fast switch. Can meet, electroacoustic curing, offset printing, special printing, product coating and other industries use demand. Different wavelength devices can be selected for different use requirements.


Scope of application

  • 1.Speakers,

    2.Receiver Receiver

  • 3.arphones, earplugs

  • 4.Offset printing

  • 5.Gravure, lithographic, relief, screen printing

  • 6.Paper finish

  • 7.Product surface coating


Product characteristics

Low power consumption, long service LIFE UV LED conversion efficiency than the traditional mercury lamp, and greatly increased service life.

High Energy, uniform and stable output. Under normal working distance (10mm-30mm) , the energy can be uniformly irradiate to the surface of the articles to be cured. At 30MM height, the radiation energy can reach 4500mW/cm2(365nm, EIT energy meter) .

There are many combinations of the lamp cap and the controller, one is the combination of one controller and one lamp cap, the other is the combination of one controller and two lamp caps. A variety of combinations to adapt to a variety of use needs.

In addition to the combined control of THRAYPOWER1A/100-122A control box + PLC, the multi-control mode 1 can also be designed according to different requirements of customers to make the equipment more convenient to use.

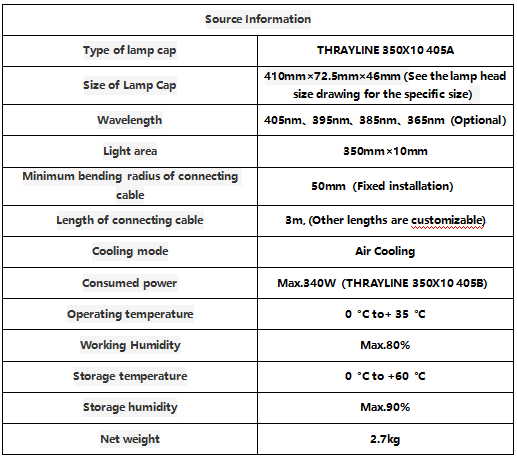

Technical parameter
